“JIN ZHU HU” Ferry

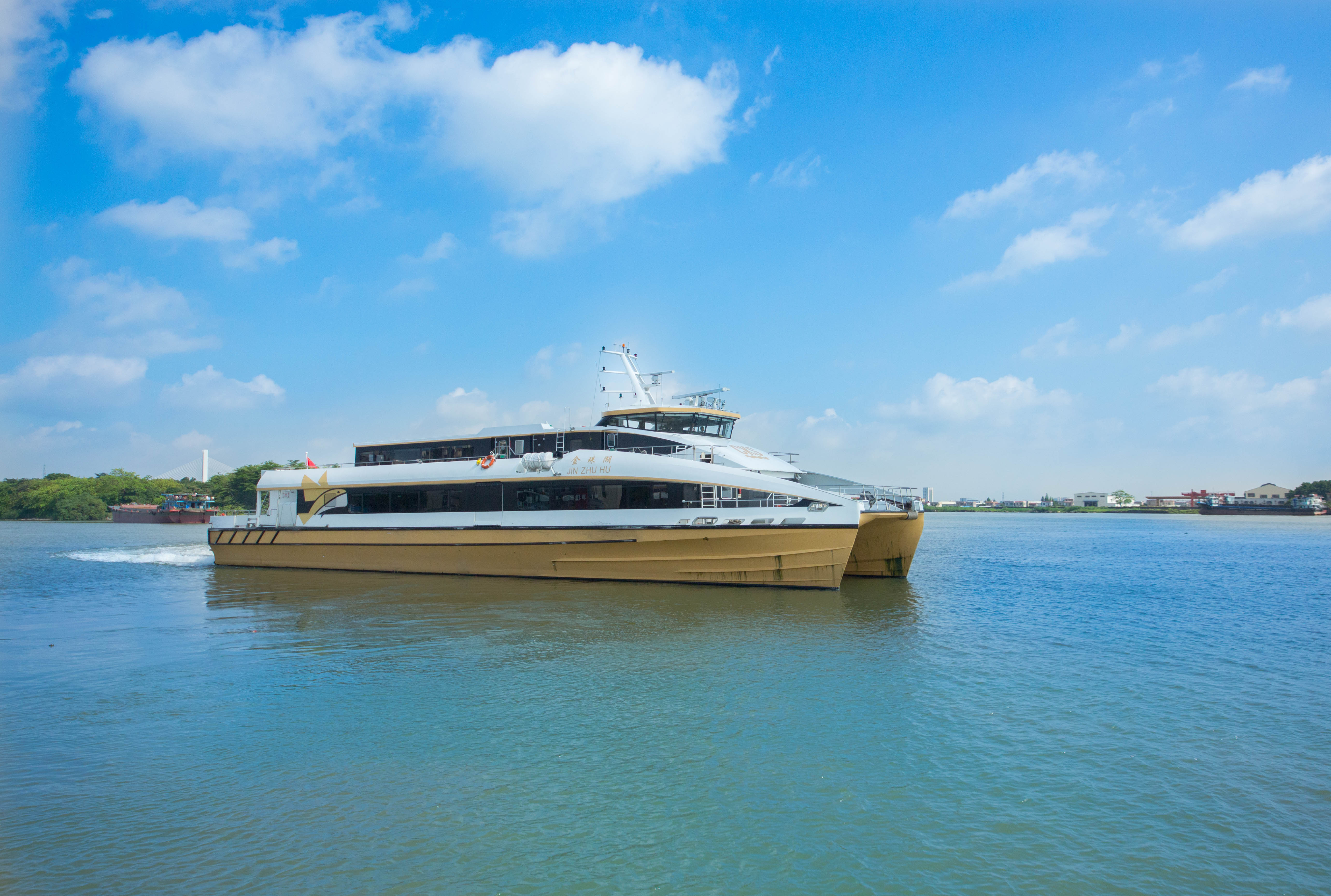

“JIN ZHU HU”: A high-speed passenger catamaran made from carbon fiber composite, that was designed and built by Brodrene Aa As shipyard in Norway, was officially put into operation on December 5, 2016 after being graded by CCS.
|
Hull Size |
Tonnage |
Passenger Quota |
|
Total Length 40.8m |
Gross Tonnage 499T |
Total Passenger Capacity 270S |
|
Molded Breadth 10.8m |
Net Tonnage 160T |
Economy Class 222S |
|
Head Room 12.4m |
|
First Class头等舱 40S |
|
Load Draught 1.265m |
|
VIP Class 8 S (2 rooms) |
Cabin Facilities
Economy class: central air conditioning system, large screen TV and audio system, luxury seats, and cabin catering service desk.
First class: central air conditioning system, large screen TV and audio system, adjustable luxury seats, cabin catering service desk, free exquisite meals and priority to board and disembark the ship.
VIP room: central air conditioning system, LCD TV, luxury massage seats, free exquisite meals and priority to board and disembark the ship.
Performance of the Ferry
Speed: full load speed 35 knots (about 65 km/h)
Stability: the intact stability meets the requirements of IMO A167 resolution, and the damaged stability meets the requirements of the 2.4.1 resolution of IMO A373 Dynamically Supported Craft Code.
Propulsion System
Main engine: MTU 16V2000 M72 high-speed diesel engine with the power of 2×1440KW
Auxiliary engine: Stamford UCM 274E1 high-speed diesel engine with the power of 2× 86kw.
Gear box: ZF 5000 x 2
Sprinkler: 2×KAMEWA S 63G4
FURUNO FAR-2117 BB color primary radar
FURUNO FAR-2137S BB color secondary radar
Automatic Identification System (AIS) FURUNO FE-800 echo sounder
Magnetic compass GPS RayNav300 satellite navigator
Gyrocompass and electronic compass DM - 30 night vision system
JIN ZHU HU
